Neutrik NBNC75BWU13 BNC plug bayonet
€1,95 Excl. VAT
Neutrik NAC3FCB-1 Powercon white plug
€4,95 Excl. VAT
Neutrik NBNC75BTU11 BNC plug bayonet
€1,95 Excl. VAT
| Weight | 0,2 kg |
|---|---|
| Dimensions | 10 × 10 × 3 cm |
| Brand |
Neutrik |
| Condition |
New in box |
| Product images |
Images from manufacturer |
Need help or advice?: info@cuespares.com +31 (0)43 20 43 020
5 in stock
Pay online, or ask for a quote on the checkout page.
Assembly: More spare parts are combined as one module
Condition: Refurbished or New (Optional when available)
Description

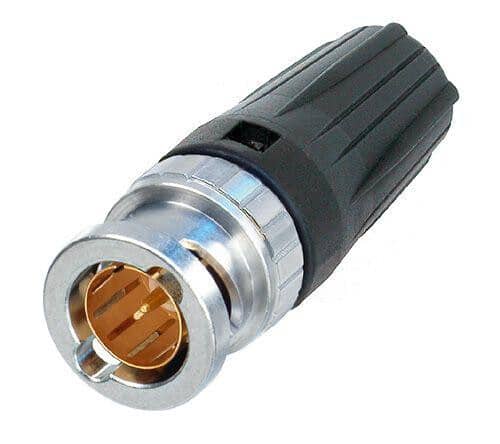

NBNC75BTU11
The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cables:
Belden 1694A (ANH), Belden 4694R, Bryant BD SD11, Canare L-4.5CHD, Clark Wire CD7506-0, CommScope 5765, Gepco VSD2001, Suhner S05163-02, Suhner S05133-07, Percon VK77
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
Features & Benefits
- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 Ω design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
